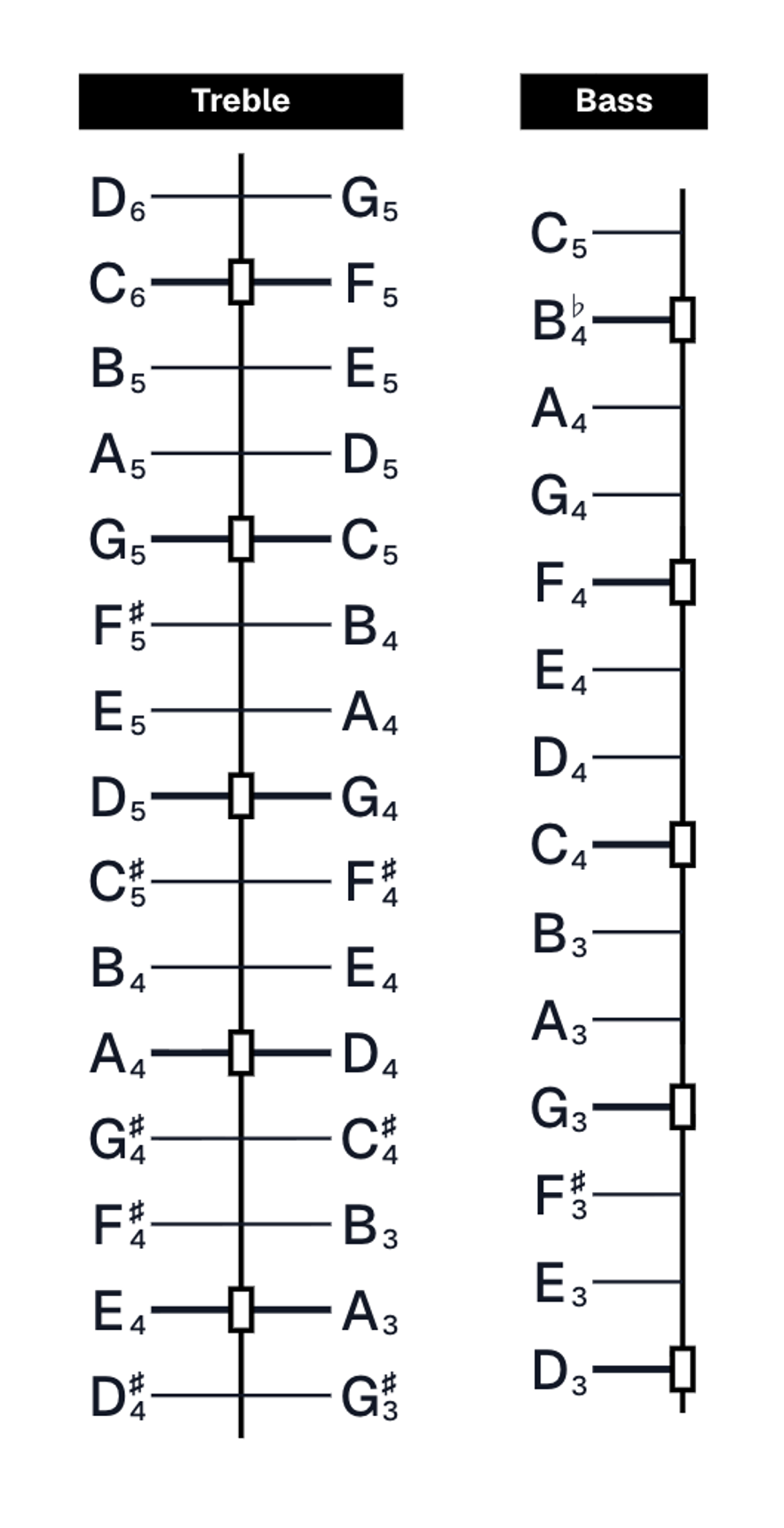

The notes on a hammered dulcimer are often simplified as a boxes-and-lines diagram for reference. To help with some future learning aids, I made a React component to generate an SVG diagram. Since instruments have different sizes and occasionally different tunings, the layout is configurable. Eventually I'll use a React Context to help annotate and animate notes.
<NoteDiagram instrument={{
...
bridges: [
{
name: 'TREBLE',
displayName: 'Treble',
leftName: 'TL',
rightName: 'TR',
courses: [
{
leftNote: "D6",
rightNote: "G5",
stringCount: 2,
},
...
],
},
{
name: 'BASS',
displayName: 'Bass',
leftName: 'B',
courses: [
{
leftNote: "C5",
stringCount: 2,
},
...
],
}
]
}} />
